Valve Stem Seals, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the camshafts. Refer to CAMSHAFT, REMOVING AND INSTALLING .

-- Remove roller rocker lever together with support elements and place on a clean surface.

NOTE:

Ensure that the roller rocker levers and the support elements are not interchanged.

-- Remove the spark plugs using :3122B .

-- Move piston for that cylinder to "Bottom Dead Center (BDC) position".

-- Install the :2036 with :2036/1 and adjust the bearing.

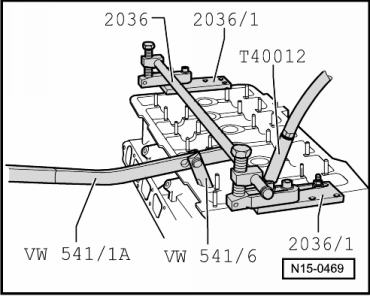

Fig 1: Identifying Adjustable Rod 2036, Adapter T40012 And Valve Lever VW 541/1 A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the :T40012/1 in the spark plug hole, connect the compressed air line with a commercially available adapter and apply constant pressure. At least 6 bar (87 psi).

-- Remove the valve springs with the : VW541/1A and :VW541/6 .

NOTE:

Tight valve retainers can be loosened by tapping lightly on the lever.

-- Remove the valve stem seals using :3364 .
