Overview - Cylinder Head: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

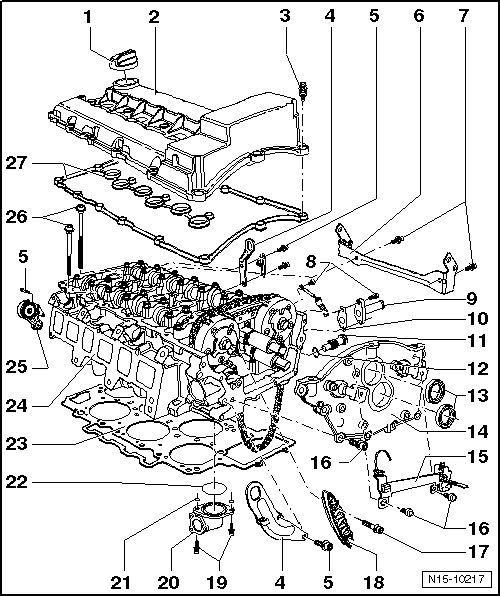

Fig 1: Exploded View Of Cylinder Head, Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Cap
- Replace the seal if damaged.
Cylinder Head Cover
- Removing and installing. Refer to CYLINDER HEAD COVER, REMOVING AND INSTALLING .
Bolt
- 10 Nm
- Replace the seal if it is damaged.
- With a spacer sleeve and seal
Lifting Eye
Bolt
- 23 Nm
Intake Manifold Support
Bolt
- 23 Nm
Bolt
- 10 Nm
Connection
Seal
- Always replace
- Note the installation position
Chain Tensioner
- 50 Nm
- For the camshaft timing chain
- Only rotate the engine with chain tensioner installed
Seal
- Always replace
Seal
- For the Camshaft Adjustment Valve 1 -N205- and Exhaust Camshaft Adjustment Valve 1 -N318-
- Replace if damaged or leaking
- Installing. Refer to COVER SEALS, INSTALLING .
Cover
- Can be removed and installed with the engine installed
- Coat the sealing surface with Sealant:D 176 501 A1
Bracket
Bolt
- 8 Nm
Bolt
- 23 Nm
Guide Rail
- For the camshaft timing chain
Bolt
- 23 Nm
- Insert with Locking Fluid:D 000 600 A2
Connection
- Bolt on in front of cylinder head installation
- Can be replaced only when the transmission is removed.
O-Ring
- Always replace
Seal
- Always replace
Cylinder Head Gasket
- Metal Gasket
- Always replace
- Cylinder head gasket, replacing. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- After replacing, replace entire amount of coolant.
Cylinder Head
- Check for distortion. Refer to Figure
- Removing and installing. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- After replacing, replace entire amount of coolant.
Tensioner
- For the ribbed belt
- Ribbed belt, removing and installing. Refer to RIBBED BELT, REMOVING AND INSTALLING .
Cylinder Head Bolt
- Always replace
- Coat the bolt with Locking Fluid: D 197 300 A2 before installing. Refer to CYLINDER HEAD, REMOVING AND INSTALLING
- Follow the installation instructions and the sequence when loosening and tightening the bolts. Refer to CYLINDER HEAD, REMOVING AND INSTALLING
Cylinder Head Cover Gasket
- Replace if damaged or leaking
- Note the installation position
