Mechanical Vacuum Pump, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

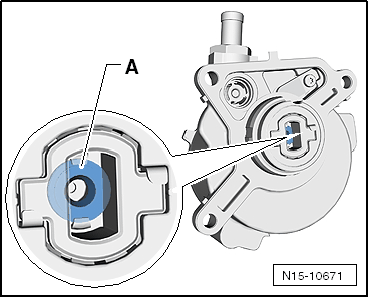

Fig 1: Identifying Seal In Vacuum Pump -A-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check the sealing ring in vacuum pump -A- for damage. Replace the vacuum pump if the seal is damaged.

-- Turn the vacuum pump rotor so the flattened sides of the input shaft fit into the rotor.

-- Slide vacuum pump evenly all the way into the alignment hole in the cover.

-- Tighten the bolts -arrows- and connect the vacuum line -A-.

Fig 2: Identifying Vacuum Line And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tightening specifications. Refer to OVERVIEW - MECHANICAL VACUUM PUMP .
