Cylinder Head Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the ignition coils with power output stage. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .

-- Remove the intake manifold upper section. Refer to INTAKE MANIFOLD UPPER SECTION, REMOVING AND INSTALLING .

NOTE:

Seal the intake ports in the intake manifold and in cylinder head with clean cloths.

-- Remove the bolts -1 and 2- and bracket -A-.

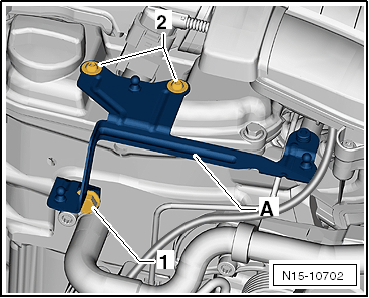

Fig 1: Identifying Bolts -1 And 2- And Bracket -A-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Free up the rear electric wires on the cylinder head and remove the cable bracket -A- from the cover.

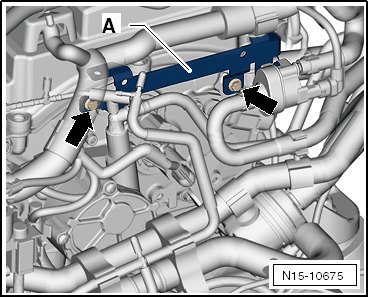

Fig 2: Identifying Bracket Bolts -Arrows- And Bracket -A- From Cylinder Head Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the crankcase housing ventilation hose from the cylinder head cover.

-- Loosen the cylinder head cover bolts starting from the inside and working toward the outside -17 through 1-.

Fig 3: Cylinder Head Cover Bolt Loosening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts and the cylinder head cover.
