Installing Camshaft Adjuster

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Conditions:

Crankshaft at >>TDC<<
The high pressure pump drive chain sprocket is secured with the :T10363
The camshafts are secured with the :T10068A .

First install camshaft adjuster for intake camshaft as follows:

NOTE:

The camshaft adjusters are locked in their >>rest position<<. Therefore sensor wheel cannot be rotated when adjusting the valve timing. If locking mechanism in its >>rest state<< is not engaged (locked) turn adjuster in both directions by hand until it locks. If that is not possible, replaced camshaft adjuster.

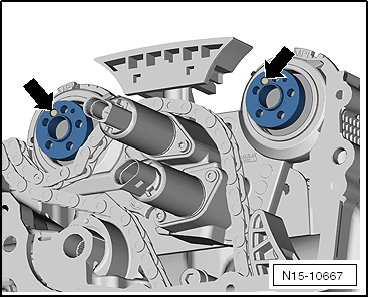

The camshaft adjusters can be attached to the camshaft mount in only one position -arrows-. This is due to the alignment pin.

Fig 1: Identifying Position -Arrows- Of Camshaft Adjusters

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the intake camshaft adjuster with the timing chain in place on the camshaft timing chain. Note The Following:

The timing chain for the high pressure pump drive train sprocket must not >>hang through<<.
It must be easy to mount the camshaft adjuster with the timing chain >>taut<< and can then be tighten by hand.

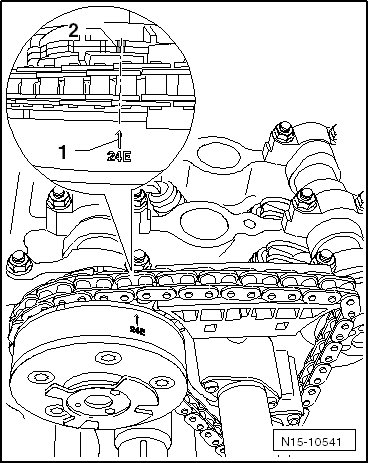

Arrow -1- on camshaft adjuster >>24E<< must align with the right notch -2- of control housing. Markings on control housing. Refer to Figure.

Fig 2: Identifying Camshaft Adjuster Align With Right Notch Of Control Housing
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the camshaft adjuster retaining bolt by hand.

-- Count exactly 16 rollers on camshaft timing chain to the right from tooth with arrow -1- aligning with notch -2-. Mark this roller with a color marker.

-- Install the exhaust camshaft adjuster >>32A<< into the camshaft timing chain. The previously counted 16 rollers must lie between the arrow markings >>24E<< and >>32A<<.

Fig 3: Distance Between Marks On Camshaft Adjuster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place camshaft adjuster >>32A<< with camshaft timing chain installed on exhaust camshaft. Note The Following:

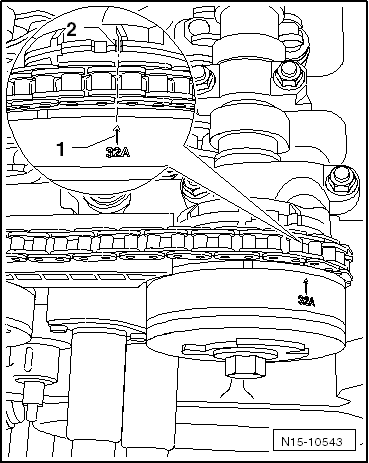

The arrow -1- on the camshaft adjuster >>32A<< must align with the notch -2- on the right side of the control housing. Markings on control housing. Refer to Figure.

Fig 4: Identifying Arrow On Camshaft Adjuster Aligning With Notch On Right Side Of Control Housing
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

It must be possible to insert the exhaust camshaft adjuster easily on the exhaust camshaft. If necessary, move the camshaft slightly back and forth.

-- Remove the :T10363 from the bearing shaft.

-- Remove the :T10068A .

-- Install the chain tensioner for camshaft timing chain -arrow-. Tightening specification 50 Nm.

Fig 5: Chain Tensioner Bolt Camshaft Roller Chain

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Rotate the crankshaft 2 revolutions in direction of engine rotation and check the valve timing.

Fig 6: Verifying Installation Marks Of Camshaft Adjuster And Marks On Control Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

If the markings match:

Fig 7: Counter-Holding At Camshaft Using Wrench

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the respective camshaft to be tightened using a 27 mm open-end wrench -arrow-.

NOTE:

The :T10068A must not be inserted.

Be aware that all chain sprocket securing screws/bolts must be replaced.

-- Tighten the new mounting bolts for the intake and exhaust camshaft adjuster to 60 Nm + 90° (¹ /₄ turn.

-- Clean the sealing surfaces on the rear cover. Coat the sealing surface with Sealant:D 176 501 A1

-- Mount the cover and tighten the bolts -arrows- to 8 Nm diagonally.

Fig 8: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Assembly is performed in reverse order.
