Pressing Out The Bonded Rubber Bushing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

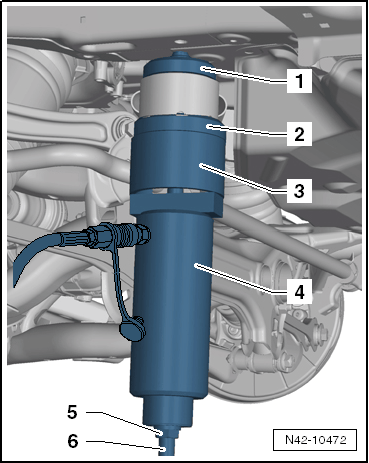

-- Mount the tools as illustrated.

Fig 1: Mount The Tools As Illustrated.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hydraulic Press - Subframe Bushing Tool Kit - Thrust Piece:T10301/5
Hydraulic Press - Subframe Bushing Tool Kit - Support Ring:T10301/4 .
Hydraulic Press - Subframe Bushing Tool Kit - Tube:T10301/3
Hydraulic Press:VAS6178 with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
Hydraulic Press - Subframe Bushing Tool Kit - Nut:T10301/2
Hydraulic Press - Subframe Bushing Tool Kit - Spindle:T10301/1

The chamfer on the outer diameter of the Hydraulic Press - Subframe Bushing Tool Kit - Support Ring:T10301/4 must face the subframe.

-- Press out the bonded rubber bushing.

CAUTION:

Before pressing out, place the Engine and Gearbox Jack:VAS6931 with the universal mount under the cylinder since the cylinder may fall down at the end of the pressing out procedure.
Hold the Hydraulic Press:VAS6178 firmly while pressing out.
