Installing The Bonded Rubber Bushing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Mount the tools as illustrated.

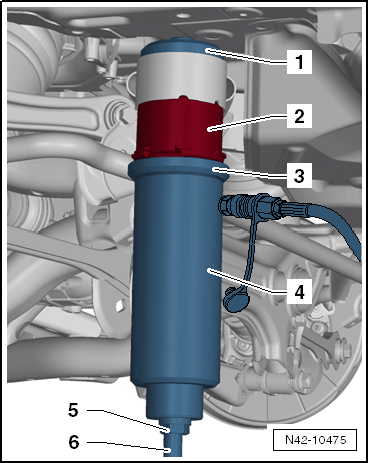

Fig 1: Mount The Tools As Illustrated.
GWWN42-10475Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Hydraulic Press - Subframe Bushing Tool Kit - Thrust Piece:T10301/7
  2. Bonded Rubber Bushing
  3. Hydraulic Press - Subframe Bushing Tool Kit - Thrust Plate: T10301/6
  4. Hydraulic Press:VAS6178  with Bearing Installer - Wheel Hub/Bearing Kit- Adapter 13:T10205/13
  5. Hydraulic Press - Subframe Bushing Tool Kit - Nut:T10301/2
  6. Hydraulic Press - Subframe Bushing Tool Kit - Spindle:T10301/1

-- Press in the bonded rubber mount until the shoulder is positioned >>without a gap<< against the socket of the subframe.
