Installed Location

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

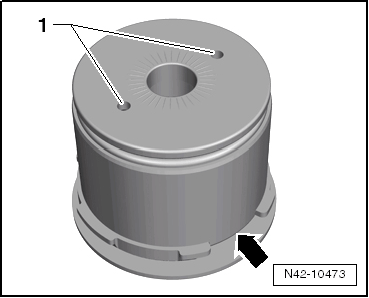

The holes -1- must point longitudinal to the direction of travel.

Fig 1: Holes -1- Must Point Longitudinal To Direction Of Travel
GWWN42-10473Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The cutouts -arrow- must point perpendicular to the direction of travel
