Charge Air Pressure Sensors - G31- And - G447-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Charge Air Pressure Sensor -G31-, Removing:

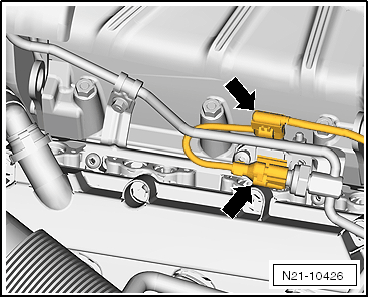

-- Disconnect the connector -arrows-.

Fig 1: NO CONTENT

GWWN21-10426

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

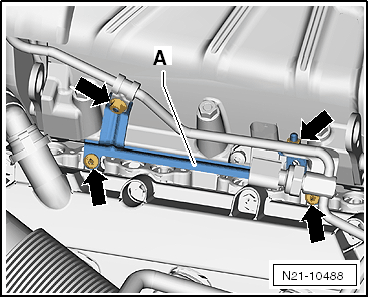

-- Remove the bolts and nuts -arrows-. Remove the bracket -A-.

Fig 2: NO CONTENT

GWWN21-10488

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and remove the charge air pressure sensor.

Fig 3: Installation Location Charge Air Pressure Sensor -G31- /Intake Manifold Temperature Sensor -G72-

GWWA21-10369

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Charge Air Pressure Sensor 2 -G447-, Removing:

Fig 4: Identifying Vacuum Hose -1-, Bolts -Arrows- And Cover -2-

GWWA21-10462

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Free up the vacuum hose -1-.

-- Remove the screws -arrows- and remove the cover -2-.

-- Disconnect the connector -1-.

-- Remove the bolts -arrows- and remove the charge air pressure sensor.

Fig 5: Installation Location Charge Air Pressure Sensor -G31- /Intake Manifold Temperature Sensor -G72-

GWWA21-10369

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
