Overview - Charge Air Cooling Components

WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

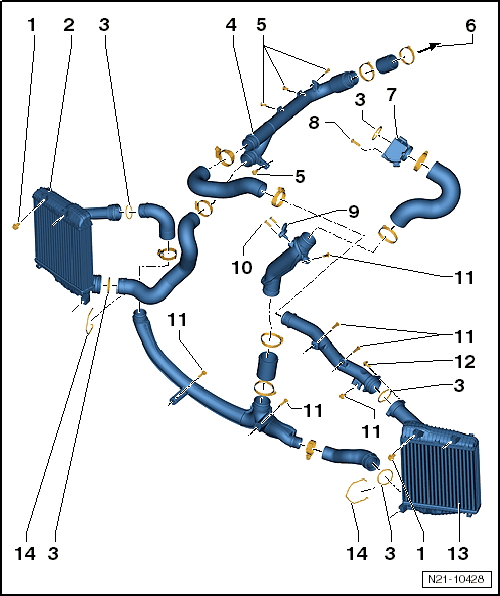

Fig 1: Charge Air System Components Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 9 Nm
Right Charge Air Cooler
O-Ring
- Replace
Right Air Guide Pipe
Bolt
- 9 Nm
From Turbocharger
Throttle Valve Control Module -J338-
Bolt
- 9 Nm
Intake Air Temperature Sensor -G42-
- With Charge Air Pressure Sensor -G31-
Bolt
- 5 Nm
Bolt
- 9 Nm
Bolt
- 9 Nm
Left Charge Air Cooler
Clip
