Ribbed Belt TENSIONER, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine compartment cover. Refer to ENGINE COMPARTMENT COVER, REMOVING AND INSTALLING .

-- Remove the front engine cover -1- upward.

Fig 1: Engine Cover -2-

GWWN26-10657

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt for the coolant pipe -1-. Ignore the -arrows-.

Fig 2: Identifying Clamps -Arrows- To Coolant Hoses

GWWA19-10758

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Remove the bolts for the coolant pipes -1 through 3-.

Fig 3: Locating Coolant Pipe Bolts

GWWN17-10252

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pivot the tensioner clockwise -arrow- to release the tension on the ribbed belt.

Fig 4: Releasing Tension On Belt

GWWN13-10455

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the ribbed belt from the tensioning element and release the tension on the tensioner.

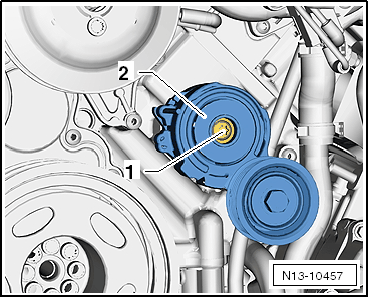

-- Remove the bolt -1-.

-- Push the coolant pipes aside and remove the ribbed belt tensioner -2- from the cylinder block.

Fig 5: Identifying Belt Tensioner & Bolt

GWWN13-10457

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
