Rear Seat Outer Seat Belts, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal.

WARNING:
  • The belt relay -2- must swing in a vertical direction or carrier direction by itself after the screw -1- is tightened.
  • The seat belt must not be impeded by cables, wires, insulation, etc.

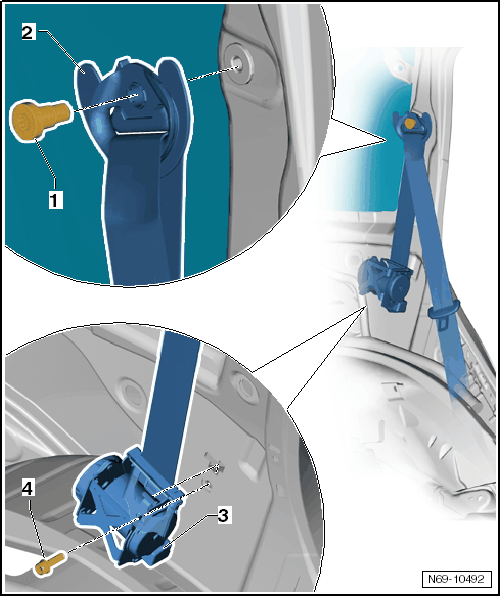

Fig 1: Identifying Outer Rear Seat Belts (1 Of 2)
GWWN69-10492Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the battery. Refer to BATTERY .
