Rear Center Seat Belt Latch, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition.
-- Remove the 2/3 seat bench. Refer to BENCH SEATS, REMOVING AND INSTALLING .
-- Remove the 2/3 backrest. Refer to REAR SEATS, REMOVING AND INSTALLING .
-- Remove the inner trim from the 2/3 rear seat. Refer to REAR SEAT INNER TRIM, REMOVING AND INSTALLING .
-- Open the hooks on the lower cover with a screwdriver and disengage them from the rear seat backrest -arrow A-.
-- Disengage the upper cover -1- from the backrest and remove in direction of -arrow B-.

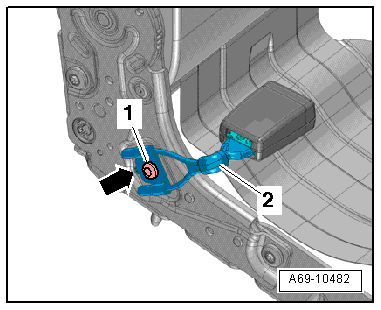

-- Remove the bolt -1- (50 Nm ) and the seat belt latch -2-.
