Rear Center Belt Anchor, Removing And Installing: Installing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

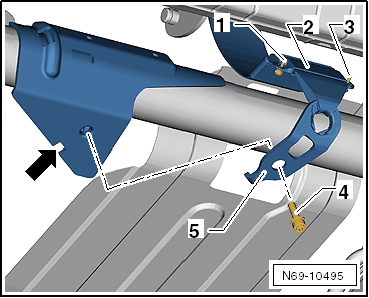

-- Clip the belt guide -2- into the console.
NOTE:
The belt guide latches must engage completely in the mount openings.
The belt guide must lie evenly on the console.
-- Secure the belt guide via the clamping pins -1- and -3-.
WARNING:
Check whether the belt guide latches are fully engaged and undamaged.
-- Position the belt anchor -5- on the console.
WARNING:
Ensure that the anti-twist mechanism is in the console opening -arrow-.
-- Secure the belt anchor with the bolt -4-.
The tightening specification for the bolt -4- is 50 Nm .
