Front Seat Belt Height Adjusters, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the B-pillar trim. Refer to B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the bolt -1- (50 Nm ) and detach the belt relay -2- from the belt height adjuster.

Fig 1: Identifying Bolt And Belt Relay

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1- (20 Nm ) and detach the belt height adjuster -2- from the mounts in the carrier plate.

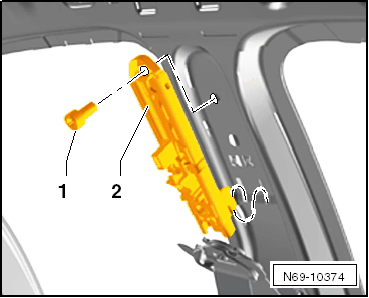

Fig 2: Identifying Bolt And Belt Height Adjuster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
