Front Seat Belt Anchor, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the seat forward as far as possible.

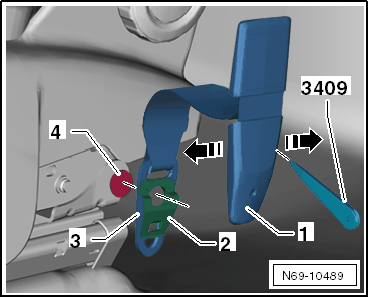

-- Use the :3409 , to carefully pry the cap -1- on the sides toward the outside -arrows- and remove it from the belt anchor -3-.
-- Press the securing spring -2- outward using a screwdriver (max. 4 mm tip width).
-- Press down the belt anchor -3- to the stop on the T-pin -4-.
-- Pull the belt anchor outward off of the T-pin on the seat frame.
