Driver Side Rear Side Airbag Crash Sensor -G256-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow the General Safety Precautions when working with airbags, belt tensioners and battery cut-out units (pyrotechnic components). Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, GENERAL SAFETY PRECAUTIONS .

-- Disconnect the battery. Refer to BATTERY .

-- Remove the seat benches. Refer to BENCH SEATS, REMOVING AND INSTALLING .

-- Remove the rear seats. Refer to REAR SEATS, REMOVING AND INSTALLING .

-- Remove the belt end fitting for the outer rear seat. Refer to REAR SEAT OUTER SEAT BELT END FITTING, REMOVING AND INSTALLING .

-- Remove the C-pillar trim panel. Refer to C-PILLAR TRIM, REMOVING AND INSTALLING .

-- Wheel Housing Trim, Removing and Installing. Refer to WHEEL HOUSING TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the sill panel strip. Refer to SILL PANEL STRIP, REMOVING AND INSTALLING .

-- Unlock the connector lock and disconnect the connector -2- from the crash sensor -1-.

-- Remove the bolt -3- (9 Nm ).

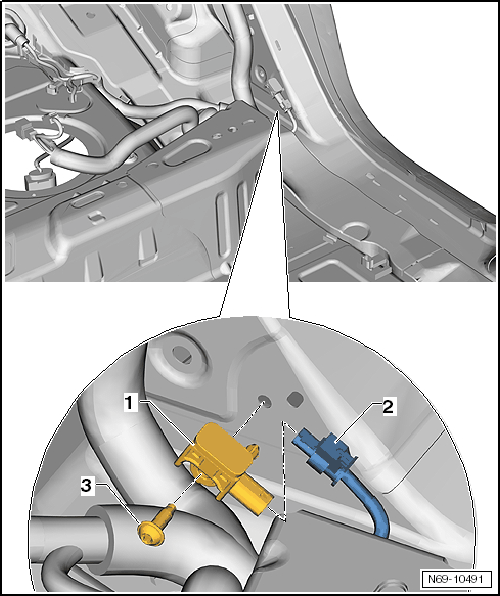

Fig 1: Identifying Crash Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
