Rear Side Airbag, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Always read the General Safety Precautions before working on airbags, belt tensioners and battery cut-out units (pyrotechnical components). Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, GENERAL SAFETY PRECAUTIONS .

-- Remove the 2/3 seat bench. Refer to BENCH SEATS, REMOVING AND INSTALLING .

-- Remove the 2/3 backrest. Refer to REAR SEATS, REMOVING AND INSTALLING .

-- Remove the outer trim from the 2/3 section. Refer to REAR SEAT OUTER TRIM, REMOVING AND INSTALLING .

-- Remove the pass-through. Refer to PASS-THROUGH, REMOVING AND INSTALLING .

-- Remove the headrest from the 2/3 section. Refer to HEADREST, REMOVING AND INSTALLING .

-- Remove the headrest guides from the 2/3 section. Refer to REAR HEADREST GUIDES, REMOVING AND INSTALLING .

-- Remove the rear center belt end fitting. Refer to REAR CENTER BELT ANCHOR, REMOVING AND INSTALLING .

-- Remove the cover and cushion from the 2/3 section. Refer to REAR SEAT BACKREST COVERS AND CUSHION, REMOVING AND INSTALLING .

-- Loosen the wiring harness off the backrest and remove the screw -1- (9 Nm ).

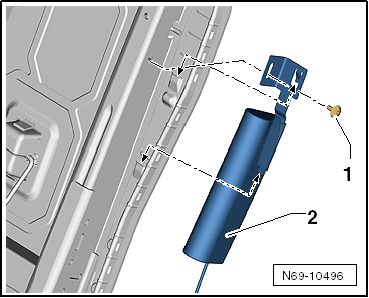

Fig 1: Identifying Airbag Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Detach the airbag module -2- from the backrest.

-- Detach the airbag case from the airbag module.
