Head Curtain Airbag, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Install in reverse order of removal.

CAUTION:

There is a test strip on the head curtain airbag. The test strip must be visible over the entire length after installation. Twisting is not permissible!

WARNING:

After clipping on the head curtain airbag, make sure the clips on both sides are securely engaged.

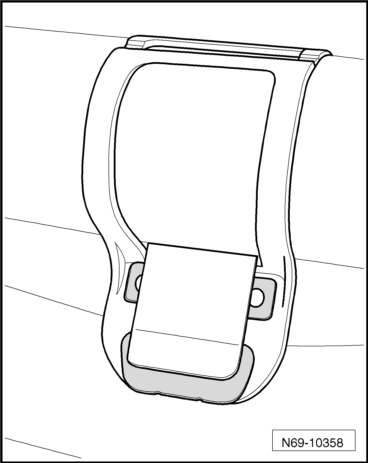

Clamps Latched on Both Sides

Fig 1: Identifying Clamp (Latched On Both Sides)
GWWN69-10358Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

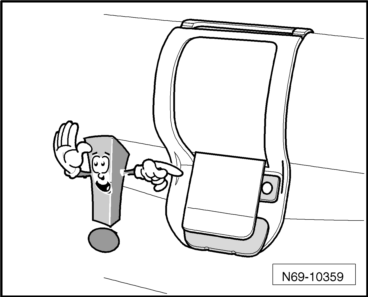

Clamps Latched on One Side

Fig 2: Identifying Clamp (Latched On One Side)
GWWN69-10359Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Latch the clips on both sides.

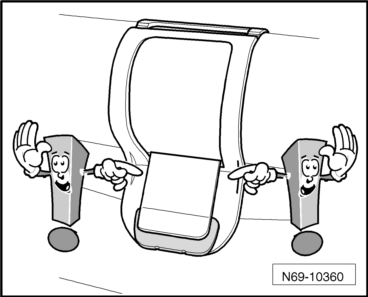

Clamp not Latched

Fig 3: Identifying Clamp (Not Latched)
GWWN69-10360Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Latch the clips on both sides.

-- Switch the ignition on.

WARNING:

Make sure that no persons are in the vehicle.

-- Connect the battery. Refer to BATTERY .
