Brake Pedal, Attaching To Brake Booster

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Hold the push rod ball head in front of the mount and push the brake pedal toward the brake booster until the ball head engages audibly.

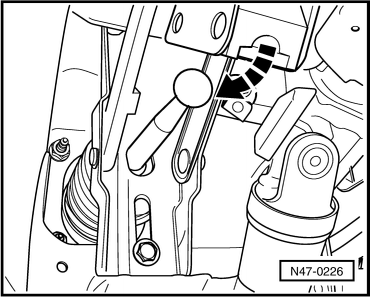

Fig 1: Identifying Brake Pedal Pressure Rod

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install In Reverse Order Of Removal.
