Left Rear Wheel Housing Liner: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

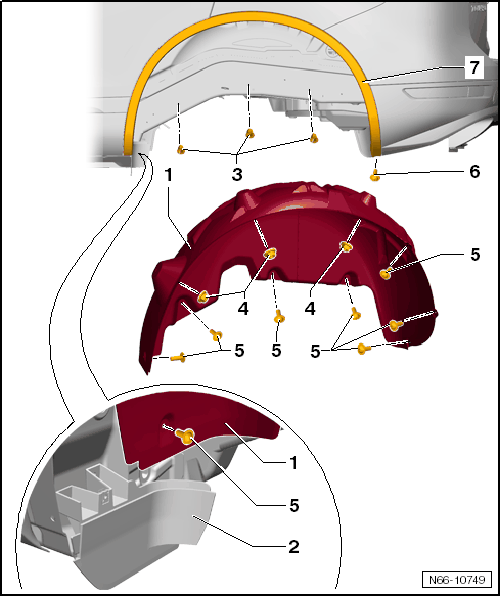

Fig 1: Identifying Left Rear Wheel Housing Liner

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the wheel. Refer to WHEEL, CHANGING .

-- Loosen the wheel cover -7- near the bumper. Refer to FRONT AND REAR WHEEL COVERS .

-- Remove the bolts -5- and hex nut -4-.

-- Remove the rear wheel housing liner -1- from the wheel housing.
