Bolt Tightening Sequence

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

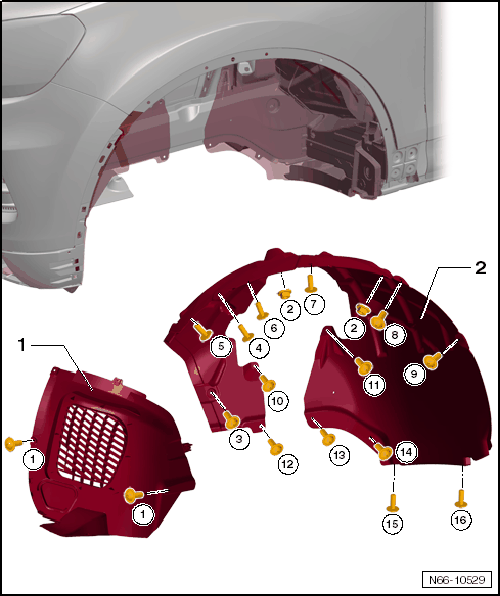

Fig 1: Front Wheel Housing Liner Bolt Tightening Sequence
GWWN66-10529Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The bolts and hex nuts are to be tightened in the specified order -1 through 16-.
