Roof Pillar Strip, Removing And Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

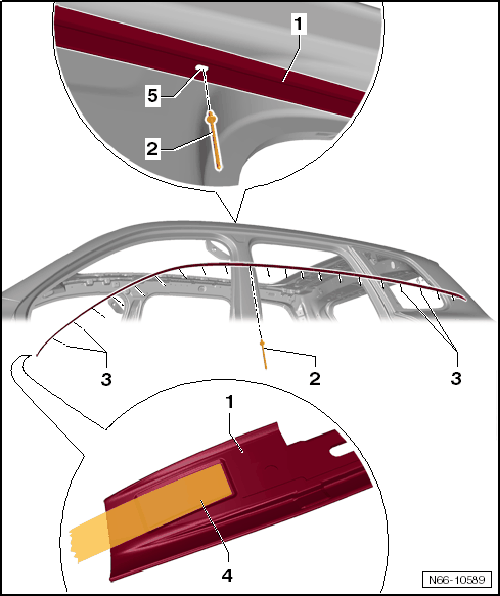

Fig 1: Identifying Roof Pillar Strip

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing the Roof Pillar Strip

-- Remove the cover strip. Refer to COVER STRIP, REMOVING AND INSTALLING .

-- Remove the rear side window.

-- Remove the pop rivets -2 and 3-.

-- Carefully detach the roof pillar strip at the adhesive surface -4- and remove it from the vehicle.

-- Remove any adhesive residue with Adhesive Strip Remover: VAS6349 .

Installing the Roof Pillar Strip

-- Clean the adhesion surface thoroughly with adhesive remover D 002 000 10 immediately prior to adhesion.

The adhesive surface must be free of dust, grease and adhesive residue.

-- Move the roof pillar strip -1- to the installation position.

-- Secure the first blind rivet -2- in the centering hole -5-.

-- Secure the remaining blind rivets -3-.

-- Remove the protective film -4-.

-- Firmly press on the roof pillar strip -1- in the adhesion surface area.
