Rear Lid Tail Lamps, Removing And Installing, From My 2015: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment.
-- Remove the key.
-- Open the rear lid.

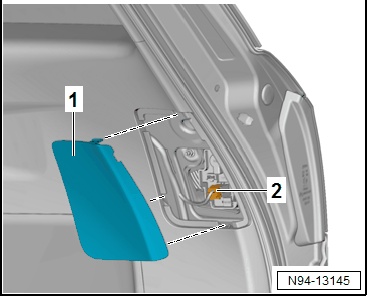

-- Unclip the service cover -1- from the rear lid trim panel.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Disconnect the connector -2-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

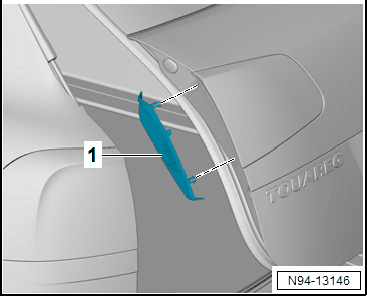

-- Remove the cover -1-.

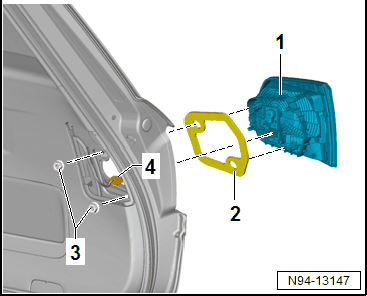

-- Remove the nuts -3-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Remove the tail lamp -1- with seal -2-.
