Rear Lid Tail Lamp Bulb Holder, Removing And Installing, Through My 2014: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electric consumers and remove the key.

-- Open rear lid.

-- Unclip service cover -1- from rear lid trim.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

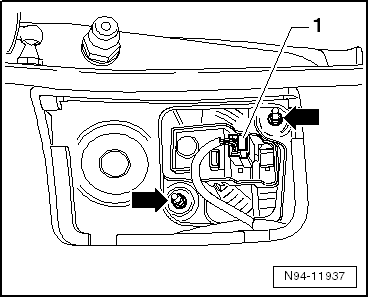

-- Release and disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

It is not necessary to remove the tail lamp assembly from the rear lid in order to remove and install the bulb holder.

The following illustration shows the tail lamp assembly removed.

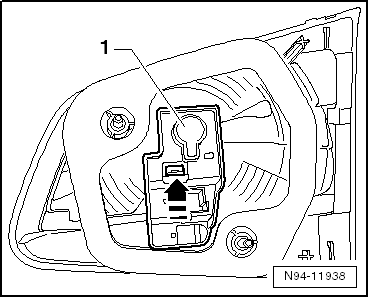

-- Open the tab in direction of -arrow- and remove the bulb holder -1- from the tail lamp housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

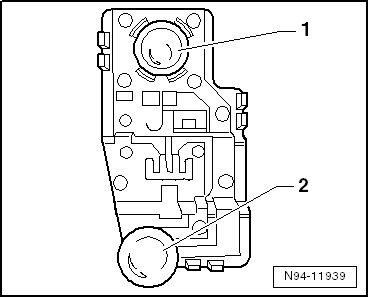

Press the bulb -1- into the bulb socket and turn it to the left. Then pull the bulb -2- straight out.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tail lamp bulb 2, 12V/R5W
Backup lamp bulb, glass base bulb 12V/W16W
