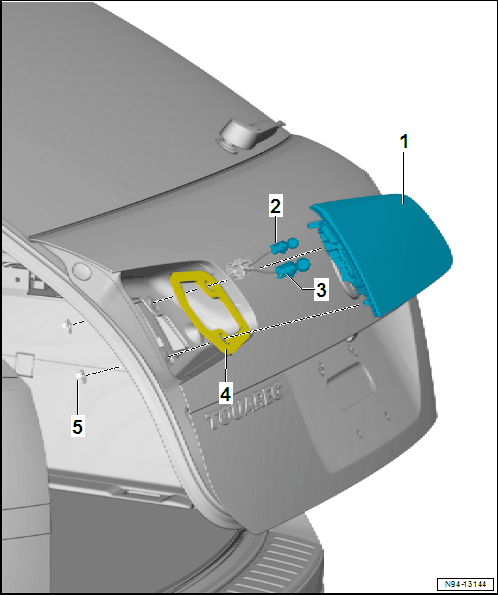

Overview - Rear Lid Tail Lamps, From My 2015
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Tail Lamp Housing
- Removing and installing. Refer to REAR LID TAIL LAMPS, REMOVING AND INSTALLING, FROM MY 2015
- Left Tail Lamp Bulb 2 -M49- and Right Tail Lamp Bulb 2 -M50-
- 12V/R5W
- Checking. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, OUTPUT DIAGNOSTIC TEST MODE .
- Left Back-Up Lamp Bulb -M16- and Right Back-Up Lamp Bulb -M17-
- 12V/W16W
- Checking. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, OUTPUT DIAGNOSTIC TEST MODE .
- Seal
- Replace if faulty according to the Parts Catalog.
- Nuts
- 3 Nm
- For attaching the tail lamp assembly to the rear lid
