Rear Parking Aid Warning Buzzer -H15-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove The Side Trim Panel Inside The Luggage Compartment On The Right Side. Refer To LUGGAGE COMPARTMENT SIDE TRIM PANELS, REMOVING AND INSTALLING .

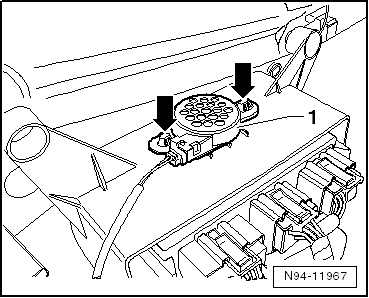

-- Squeeze the both tabs -arrows- together and remove the Rear Parking Aid Warning Buzzer -H15- -1- from the control module mount. Pay attention to the wires still connected.

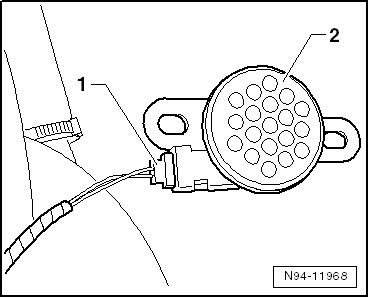

-- Release and disconnect the connector -1- and remove the Rear Parking Aid Warning Buzzer -H15- -2-.
