Rear Turn Signal Bulb --, Replacing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical consumers and remove the key.

-- Remove the side panel tail lamps. Refer to SIDE PANEL LED TAIL LAMPS, REMOVING AND INSTALLING .

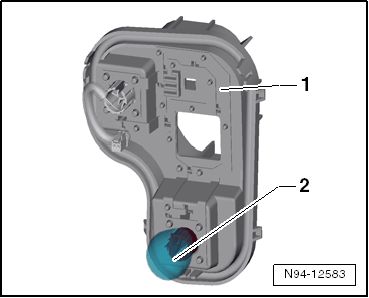

-- Open the tabs in direction of -arrows- and remove the bulb holder -1- from the tail lamp housing. Pay attention to the wires still connected.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Push the turn signal bulb -2- slightly into the bulb socket, turn it to the left and remove it from the bulb holder -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear turn signal bulb -- : 12V/PY21W
