Rear Lid Led Tail Lamps, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical consumers and remove the key.

-- Open the rear lid.

-- Unclip the service cover -1- from the rear lid trim.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the cover -1- carefully to the side and out of the tail lamp assembly.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

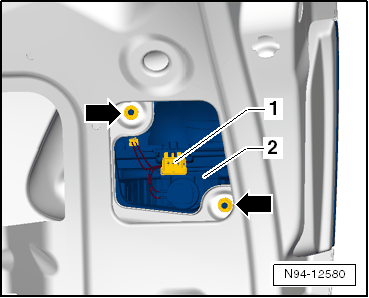

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove both nuts -arrows- and remove the tail lamp assembly -2- through the opening in the rear lid.
