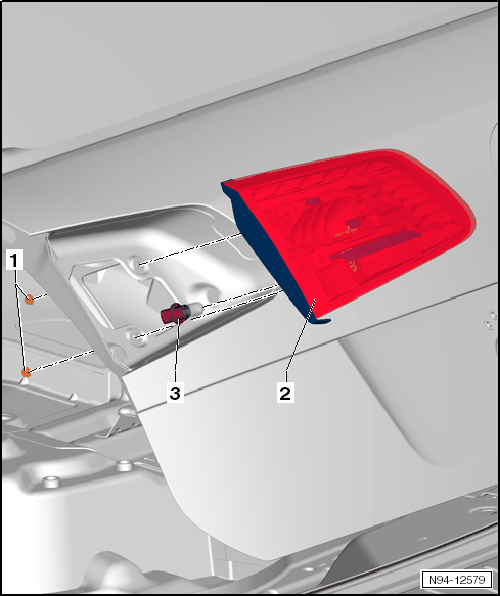

Overview - Rear Lid Led Tail Lamps

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 -
Nuts
- 3 Nm
- For attaching the tail lamp assembly to the rear lid
2 -
Tail Lamp Housing
- Removing and installing. Refer to REAR LID LED TAIL LAMPS, REMOVING AND INSTALLING
3 -
Left Back-Up Lamp Bulb -M16- and Right Back-Up Lamp Bulb -M17-
- 12V 2HG
- Removing and installing. Refer to LEFT BACK-UP LAMP BULB -M16- AND RIGHT BACK-UP LAMP BULB -M17-, REPLACING
