Left Back-Up Lamp Bulb -M16- And Right Back-Up Lamp Bulb -M17-, Replacing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical consumers and remove the key.

-- Open the rear lid.

-- Unclip the service cover -1- from the rear lid trim.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

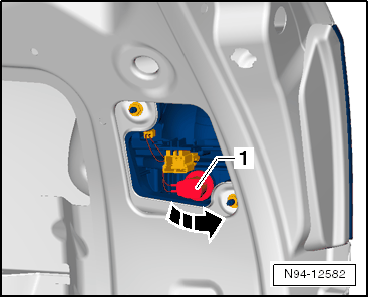

Turn the bulb socket -1- in direction of -arrow- and remove it. Pay attention to the wires still connected.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

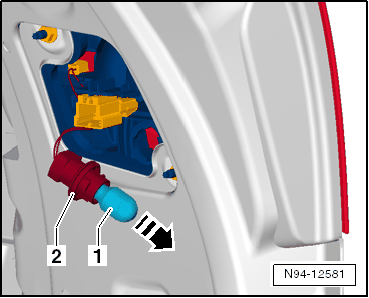

Remove the bulb -1- from the bulb socket -2- in direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Back-up lamp bulb: glass base bulb 12V 2HG
