Overview - Halogen Headlamps Through My 2014
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Check for possible influences upon the headlamp adjustment, check the adjustment itself, and if needed, adjust the headlamps. Refer to

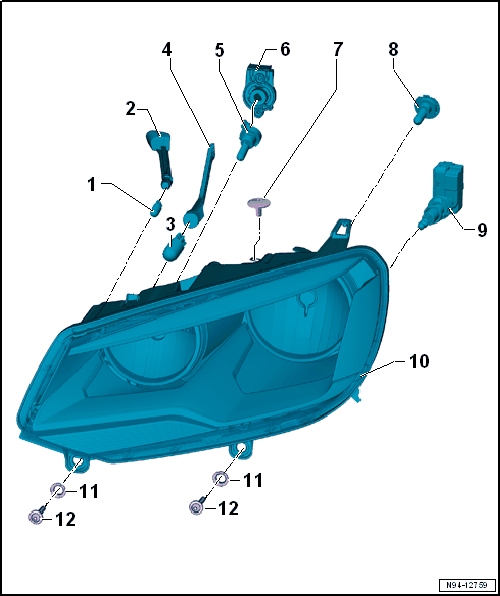

- 1 - Left Position Lamp Bulb -M1- or Right Position Lamp Bulb -M3-
- Bulb 12V, W5W
- Replacing. Refer to POSITION LAMP BULB, REPLACING .
- 2 - Lamp Socket with Grip
- For Left Position Lamp Bulb -M1- or Right Position Lamp Bulb -M3-
- 3 - Left Front Turn Signal Bulb -M5- and Right Front Turn Signal Bulb -M7-
- Bulb 12V, WY21W
- Replacing. Refer to FRONT TURN SIGNAL BULB, REPLACING .
- 4 - Lamp Socket with Grip
- For Left Front Turn Signal Bulb -M5- and Right Front Turn Signal Bulb -M7-
- 5 - Left High Beam Headlamp -M30- and Right High Beam Headlamp -M32-
- Bulb H12 12V, 15/55W
- The high beam headlamp bulb also works as the daytime running lamp.
- Replacing. Refer to HIGH BEAM HEADLAMP BULB, REPLACING .
- 6 - Bulb Socket
- For Left High Beam Headlamp -M30- and Right High Beam Headlamp -M32-
- 7 - Bolt
- 5 Nm
- 8 - Left Low Beam Headlamp Bulb -M29- or Right Low Beam Headlamp Bulb -M31-
- 2V, 55W Bulb
- Replacing. Refer to LOW BEAM BULB, REMOVING AND INSTALLING .
- 9 - Left Headlamp Beam Adjustment Motor -V48- or Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing. Refer to HEADLAMP RANGE CONTROL POSITIONING MOTOR, REMOVING AND INSTALLING
- 10 - Headlamp
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING
- Correcting installation position of headlamp. Refer to HEADLAMP INSTALLED POSITION, CORRECTING .
- Headlamp mounting tabs, servicing. Refer to HEADLAMP MOUNTING TABS, SERVICING .
- Perform a basic setting on the headlamp. Refer to
- 11 - Adjustment Bushing
- Correcting installation position of headlamp. Refer to HEADLAMP INSTALLED POSITION, CORRECTING .
- 12 - Screws
- 5 Nm
- For attaching the headlamp to the mounts
