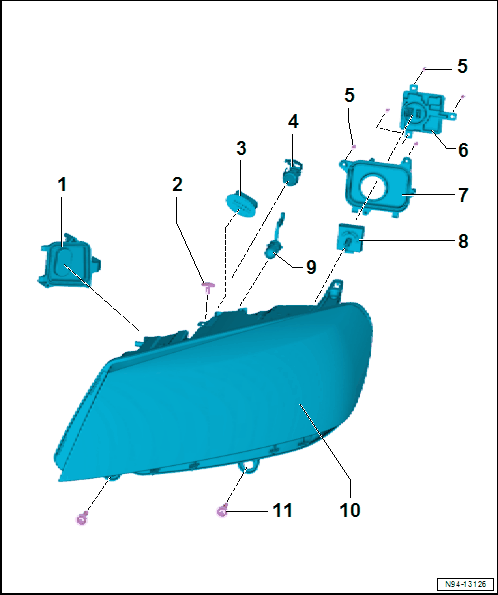

Overview - Halogen Headlamps From My 2015
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Cap
- Bolt
- 5 Nm
- Central Connector
- Left Front Turn Signal Bulb -M5- and Right Front Turn Signal Bulb -M7-
- Lamp 12V, WY24W
- Replacing. Refer to FRONT TURN SIGNAL BULB, REPLACING .
- Screws
- 2 Nm
- Left HID Headlamp Control Module -J343- or Right HID Headlamp Control Module -J344-NOTE:
The Left HID Headlamp Control Module -J343- and Right HID Headlamp Control Module -J344- is not capable of On Board Diagnostic (OBD).
- Removing and installing. Refer to HID HEADLAMP CONTROL MODULE
- Cap
- Left HID Headlamp Bulb -L13- or Right HID Headlamp Bulb -L14-
- Left Position Lamp Bulb -M1- or Right Position Lamp Bulb -M3-
- Replacing. Refer to POSITION LAMP BULB, REPLACING .
- Headlamp
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING
- Correcting installation position of headlamp. Refer to HEADLAMP INSTALLED POSITION, CORRECTING .
- Headlamp mounting tabs, servicing. Refer to HEADLAMP MOUNTING TABS, SERVICING .
- Perform a basic setting on the headlamp. Refer to
- Screws
- Tightening specification: 5 Nm
- For attaching the headlamp to the mounts
