Fog Lamps, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electric consumers and remove the key.
-- Remove the rear bumper cover. Refer to REAR BUMPER COVER, REMOVING AND INSTALLING .

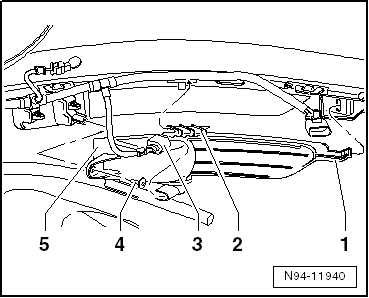

-- Unlock and disconnect the connector -3- and remove the wiring harness from the fog lamp.
-- Remove the bolt -4-.
NOTE:
Unclip the reflector (2 red retainers) next to the fog lamp to make it easier to remove and install the fog lamp.
-- Remove the fog lamp from the guide -2-.
-- Swivel the fog lamp out of the guide -1- and remove it.
