Rear Lid Courtesy Lamp -W51-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electric consumers and remove the key.

-- Pry the Rear Lid Courtesy Lamp -W51- -1- on the red side of the lens near the retainers -arrows- out of the trim panel with a screwdriver or the :3409 .

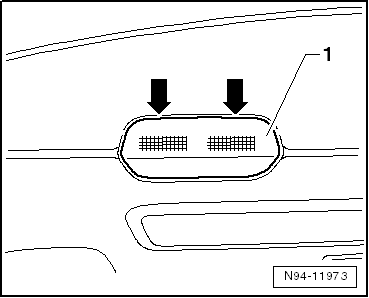

Fig 1: Identifying Rear Lid Courtesy Lamp -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unlock and disconnect the connector -arrow- and remove the rear lid courtesy lamp -1-.

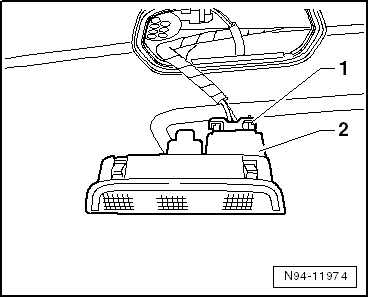

Fig 2: Connector -Arrow- And Remove The Warning Lamp -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
