Rear Lid Courtesy Lamp -W51- Bulb, Replacing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Rear Lid Courtesy Lamp -W51-. Refer to REAR LID COURTESY LAMP -W51-, REMOVING AND INSTALLING .

-- Unclip the lens -arrows- from the bulb housing.

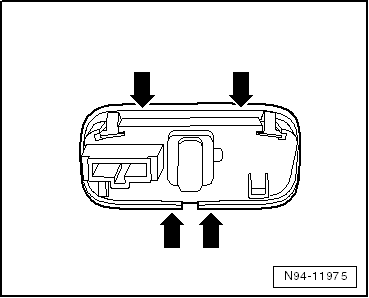

Fig 1: Identifying Lens -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the glass base bulb in direction of -arrow- from the bulb socket.

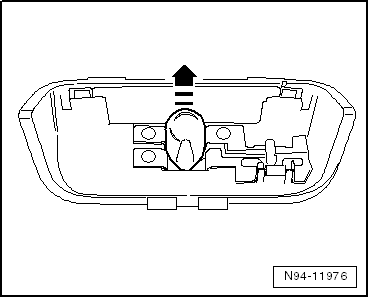

Fig 2: Glass Base Bulb In -Direction Of Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Glass base bulb: 12V, W5W
