Luggage Compartment Lamp -W3-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electric consumers and remove the key.

-- Pry the Luggage Compartment Lamp -W3- -1- out of the opening -arrow- in the side trim panel with a screwdriver.

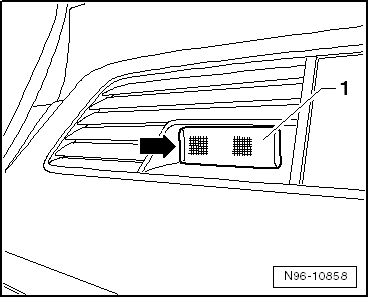

Fig 1: Compartment Lamp -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unlock and disconnect the connector -arrow- and then remove the Luggage Compartment Lamp -W3-.

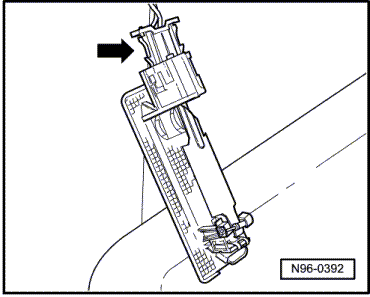

Fig 2: Identifying Luggage Compartment Light Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
