Left Rear Reading Lamp -W11- Or Right Rear Reading Lamp - W12- Bulb, Replacing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electric consumers and remove the key.

-- Remove molded headliner. Refer to Roof Trim Panels .

-- Turn the bulb socket -1- to the left and remove it, together with the bulb, from the reading lamp -2-.

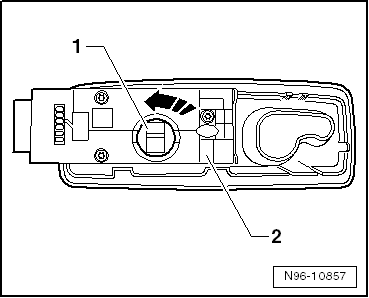

Fig 1: Bulb Socket -1- On Reading Lamp -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully remove bulb from socket.

Fig 2: Bulb Removed From Socket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Glass base bulb: 12V, 5W
