Glove Compartment Lamp -W6- With Glove Compartment Lamp Switch -E26-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electric consumers and remove the key.

-- Pry out the Glove Compartment Lamp -W6- -1- carefully with a screwdriver.

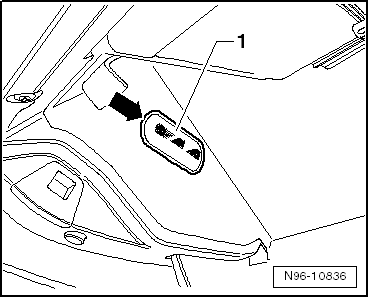

Fig 1: Glove Compartment Lamp -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -arrow- and remove the Glove Compartment Lamp -W6- and Glove Compartment Lamp Switch -E26-.

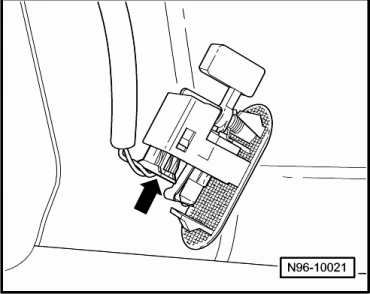

Fig 2: Glove Compartment Connector -Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
