Plenum Chamber Cover: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

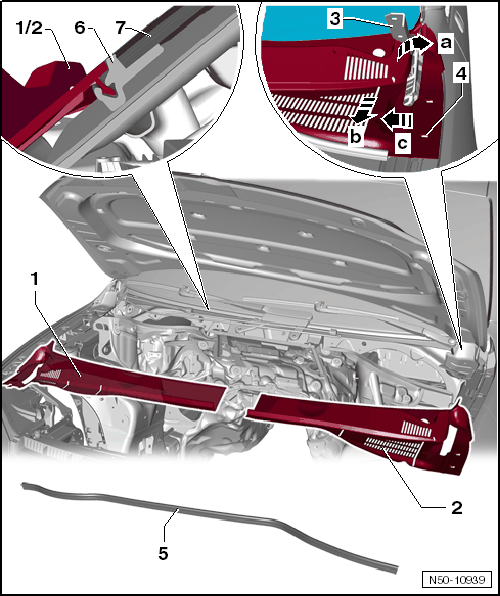

Fig 1: Identifying Plenum Chamber Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove wiper arms. Refer to WINDSHIELD WASHER SYSTEM .

-- Remove the seal -5- from the entire length of the plenum chamber cover -1 and 2-.

CAUTION:

The windshield -7- could break.

Do not use a screwdriver or a wedge to pry off the plenum chamber cover -1 and 2-. The windshield will be damaged and could crack later.

-- Lift the plenum chamber covers -1 and 2- by hand at the edge of the windshield.

-- Starting at the edge of the windshield -7- and working up, remove the plenum chamber covers -1 and 2- from the retainer -6-.

-- Lift the rear end of the plenum chamber cover in direction of -arrow a- and guide around the hinge -3-.

-- Press the plenum chamber cover inward in direction of -arrow b- to detach the guides -4- from the fender.

-- Pull the plenum chamber covers -1 and 2- forward in direction of -arrow c- and remove from the vehicle.
