SUBFRAME, Servicing, Front Bonded Rubber Bushing For Rear Final Drive, All Wheel Drive (AWD) Vehicles: Removing

-- Place The Vehicle On A Hoist.

-- Remove the coil springs. Refer To SPRING, REMOVING AND INSTALLING .

Front Bonded Rubber Bushing, Replacing

Fig 1: Identifying Stone Deflectors

Courtesy of AUDI OF AMERICA, LLC

-- Remove The Covers -1 And 2-. Refer To OVERVIEW - UNDERBODY PANELS .

-- Remove the diagonal braces on the A5 Cabriolet. Refer To DIAGONAL BRACE, REMOVING AND INSTALLING, A5 CABRIOLET, FRONT WHEEL DRIVE (FWD) .

-- Remove the stone protection plate -2-, where applicable.

Fig 2: Identifying Stone Protection Plate

Courtesy of AUDI OF AMERICA, LLC

-- Place :VAG1383A  with :VAG1359/2  -1- under the subframe.

Fig 3: Placing A Block Of Wood Under Subframe

Courtesy of AUDI OF AMERICA, LLC

-- Place a wood block -2- under the subframe -1-.

-- Remove the left and right bolts -1 and 2-.

Fig 4: Identifying Left And Right Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right supports -3-.

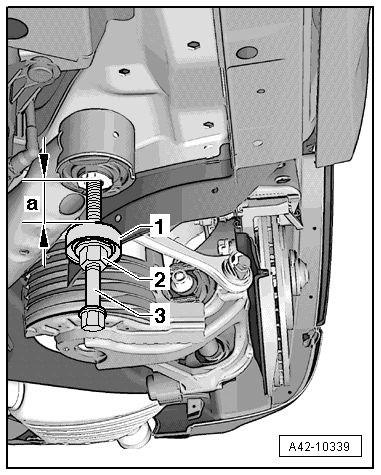

-- Install the :3346/2  with the :3301  and :3346/3  approximately 1.5 cm into the vehicle body as illustrated.

Fig 5: Identifying Spindle 3346/2, 3301 And Nut 3346/3 (Approximately 1.5 cm)

Courtesy of AUDI OF AMERICA, LLC

1. :3301
2. :3346/3
3. :3346/2

-- Remove the bolt -2-.

Fig 6: Identifying Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Lower the subframe 4 cm only.

-- Push the final drive upward over the drive axle -1-. At the same time insert the :T40186/1  and the :T10254/5  with the :T10254/4  . (A second technician is needed).

4  - :T10254/5  . The spindle pins face downward.

5  - :T10254/4

6  - :T40186/1

-- When removing or installing the rubber bonded bushing, make sure the spindle -4- does not contact the threaded hole -3- in the final drive.

The hold drilled into the inner core of the bonded rubber bushing may prevent the :T10254/5  from sliding through. If this is the case, it must be drilled out.

-- Position the drill -1- on the bonded rubber bushing -2- as illustrated and drill the hole in several steps.

Fig 7: Position Drill On The Bonded Rubber Bushing As Illustrated And Drill The Hole

Courtesy of AUDI OF AMERICA, LLC

Step 1  , 11 mm Drill Bit

Step 2  , 11.5 mm Drill Bit

Step 3  , 12 mm Drill Bit

-- If necessary, remove the :T10205/13  and in its place install the support with the >>small<< inner diameter -arrow- from the :VAS6178  .

Fig 8: Identifying Support -Arrow- And VAS 6178

Courtesy of AUDI OF AMERICA, LLC

-- Place the tools on the front bonded rubber bushing as shown in the illustration.

Fig 9: Placing Tools On Front Bonded Rubber Bushing

Courtesy of AUDI OF AMERICA, LLC

1. :T10254/4
2. :T40186/1
3. Subframe
4. :T40033/3
5. :T10205/4
6. :VAS6178
7. :T10254/4
8. :T10254/5  . The spindle pins face downward.
