Cylinder Head, Removing And Installing: Removing

• Engine/Transmission Assembly Removed And Placed On The Scissor Lift Table:VAS6131B  .

-- Remove The Affected Camshaft Timing Chain From Camshafts. Refer To CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .

-- Remove The Front Upper Coolant Pipe. Refer To FRONT UPPER COOLANT PIPE, REMOVING AND INSTALLING .

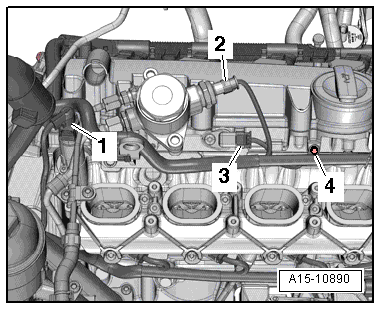

-- Disconnect The Connectors:

Fig 1: Identifying Connectors -1 To 3- And Bolt -4-

Courtesy of AUDI OF AMERICA, LLC

1. On The Camshaft Adjustment Valve
2. On The High Pressure Pump
3. On The Camshaft Position Sensor

-- Remove The Bolt -4- And Move The Electrical Wiring Harness To The Side.

-- Remove The Bolts -Arrows- And The Bracket -1-.

Fig 2: Identifying Bolts -Arrows- To Bracket -1-

Courtesy of AUDI OF AMERICA, LLC

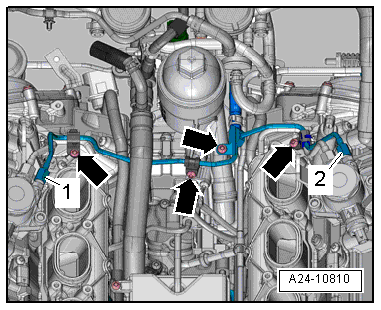

-- Remove The Bolts -Arrows- And The Union Nuts -1 And 2- And Move The Fuel Supply Line To The Side.

Fig 3: Identifying Bolts -Arrows- And Union Nuts -1 To 2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove Bolts -1 And 2- And Remove The Chain Tensioner.

Fig 4: Identifying Bolts For Left Chain Tensioner And Left Camshaft Timing Chain

Courtesy of AUDI OF AMERICA, LLC

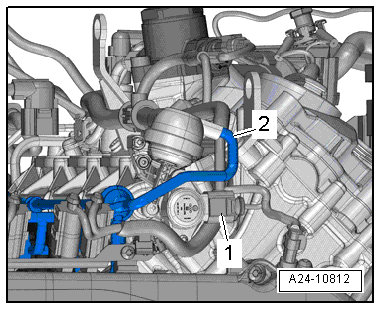

-- Disconnect The Vacuum Hose -2- And The Connector -1-.

Fig 5: Identifying Vacuum Hose -2- And Connector -1-

Courtesy of AUDI OF AMERICA, LLC

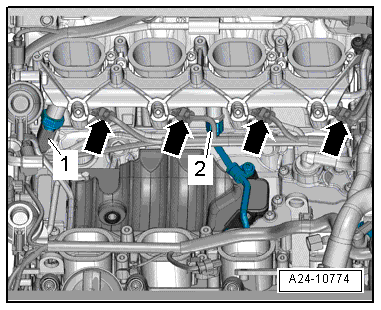

-- Disconnect Electrical Connectors -Arrows- On Fuel Injectors.

Fig 6: Identifying Electrical Connectors -Arrows-, Connector -1-, And Pressure Line -2-

Courtesy of AUDI OF AMERICA, LLC

-- Right Cylinder Head: Disconnect The Connector -1- From The Fuel Rail.

-- Remove High Pressure Line -2- From Connector On Fuel Rail By Counterholding At Hex Head With An Open End Wrench And Loosening Union Nut.

-- Remove The Locking Bolt -arrow-.

Fig 7: Identifying Locking Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove The Bolts -arrows-.

Fig 8: Cylinder Head Bolts Loosening Sequence

Courtesy of AUDI OF AMERICA, LLC
