Cylinder Head Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ignition Coil Puller T40039 Removing Ignition Coils

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ignition coils. Refer to IGNITION COILS, REMOVING AND INSTALLING .

-- Press The Release Buttons And Remove The Crankcase Ventilation Hose -2-.

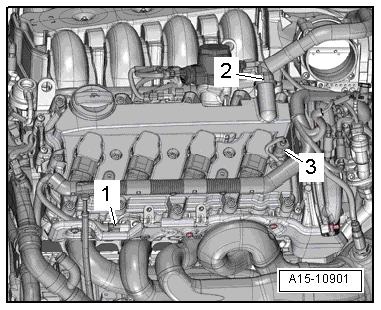

Fig 2: Identifying Crankcase Ventilation Hose -2- And Connectors -1 & 3-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect The Connectors -1 And 3- And Free Up The Wiring Harness.

-- Remove The Left Cylinder Head Bolts In The Sequence -15 To 1-.

Fig 3: Identifying Left Cylinder Head Cover Bolts Removal Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove The Right Cylinder Head Bolts In The Sequence -16 To 1-.

Fig 4: Identifying Right Cylinder Head Cover Bolts Removal Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove The Bolts And The Cylinder Head Cover.
