Ribbed Belt TENSIONER, Removing And Installing: Removing
WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the radiator with fan shroud. Refer to RADIATOR, REMOVING AND INSTALLING .
-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

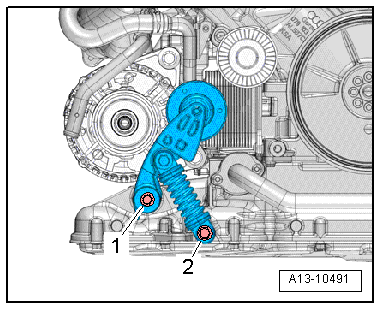

-- Remove the bolts -1 and 2-.
-- Remove The Ribbed Belt Tensioning Damper From The Oil Pan Upper Section.
