Crankshaft Seal, Replacing, Belt Pulley Side: Procedure

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

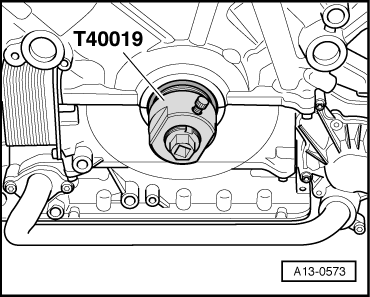

Fig 1: Identifying Oil Seal Extractor T40019

Courtesy of AUDI OF AMERICA, LLC

-- Remove the vibration damper. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .

-- Position the inner part of the Puller - Crankshaft Seal:T40019 flush with outer part and secure it with the knurled screw.

-- Lubricate The Seal Remover Threaded Head, Position It, And Then Install It Into The Shaft Seal As Far As Possible Using Strong Force.

-- Loosen The Knurled Screw And Turn The Inner Portion Against The Crankshaft Until The Seal Is Pulled Out.

-- Secure The Seal Remover In A Vise At The Flat Spots And Remove The Seal Using Pliers.

-- Clean the running and sealing surface.

-- Place the Assembly Device :T40048/1 onto the Pull Sleeve:T40048/2 and slide the shaft seal -1- onto the pull sleeve.

Fig 2: Inserting Assembly Device T40048/1 Onto Pull Sleeve T40048/2 And Slide Seal Onto Pull Sleeve

Courtesy of AUDI OF AMERICA, LLC

-- Remove the assembly device.

-- Place the Pull Sleeve:T40048/2 on the crankshaft and slide the shaft seal -1- into the sealing surface on the cylinder block.

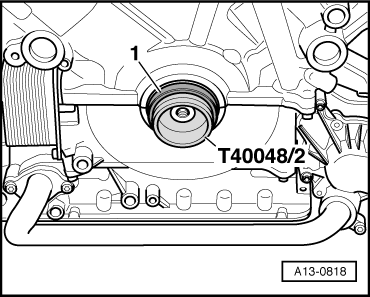

Fig 3: Placing Pull Sleeve T40048/2 On Crankshaft And Sliding Seal Into Sealing Surface On Engine

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Leave The Pull Sleeve For Pressing Onto The Crankshaft.

-- Position the Seal Installer - Pressure Sleeve:T40048/3 on the crankshaft with two M8 x 55 mm bolts -arrows-.

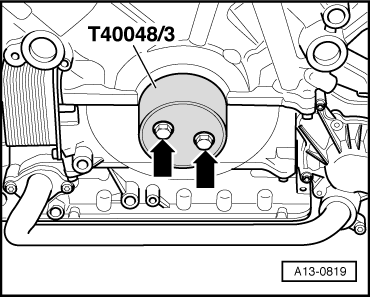

Fig 4: Positioning Pressure Sleeve T40048/3 With Bolts On Crankshaft

Courtesy of AUDI OF AMERICA, LLC

-- Install Bolts By Hand.

-- Tighten The Bolts ¹ /₂ Turn Each, Alternating From Side To Side In Order To Press The Shaft Seal All The Way In.

Install In Reverse Order Of Removal. Note The Following:

-- Install The Vibration Damper. Refer To VIBRATION DAMPER, REMOVING AND INSTALLING .
