Right Cylinder Head Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, 2009 Audi S5, and 2008 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the air duct -arrows-.

Fig 1: Identifying Air Duct

Courtesy of AUDI OF AMERICA, LLC

-- Free up the fuel line and the line to the EVAP canister on the air duct pipe.

-- Disconnect the connector -1- from the Mass Airflow Sensor -G70-.

-- Disconnect the vacuum line -3- from the air guide pipe.

Fig 2: Disconnecting Connector On Mass Airflow (MAF) Sensor

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk Of Violating Emissions Legislation On USA Vehicles.

Do not open hose connection -2- !

-- Lay Aside Air Guide Pipe With Connected Crankcase Ventilation Hose -2- By Loosening Hose Clamp -4- And Opening Clips -Arrows-.

Fig 3: Identifying Secondary Air System Components

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the vacuum line -1-.

-- Remove the air filter housing and disconnect the electrical connector -2- on the rear side at the Intake Air Switch-Over Valve -N335-.

-- Remove hose -3- from the secondary air system.

-- Remove the bolts -3 and 6- on the cylinder head cover.

-- Disconnect the connectors -1, 2, 4, 5, 7 and 8-.

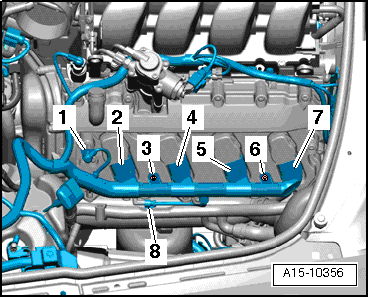

Fig 4: Removing Bolts On Right Cylinder Head & Disconnecting Electrical Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Remove all the ignition coils in direction of -arrow- using the :T40039 .

Fig 5: Identifying Ignition Coil Puller T40039 Removing Ignition Coils

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right cylinder head cover bolts in the sequence -16 to 1-.

Fig 6: Identifying Right Cylinder Head Cover Bolts Removal Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts and remove the right cylinder head cover.
