Crankcase Ventilation Hose, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Upper Intake Manifold Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove the intake manifold upper section. Refer to INTAKE MANIFOLD UPPER SECTION, REMOVING AND INSTALLING .

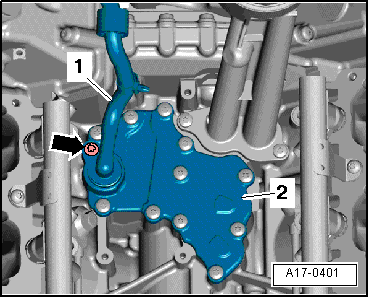

-- Remove the bolt -arrow- and remove the crankcase ventilation hose -1- from the cover -2-.

Fig 2: Removing Bolt And Crankcase Ventilation Hose From Cover

Courtesy of AUDI OF AMERICA, LLC
