Fuel Filler Door Cup Drain Hose, Removing And Installing, Except AUDI RS5

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

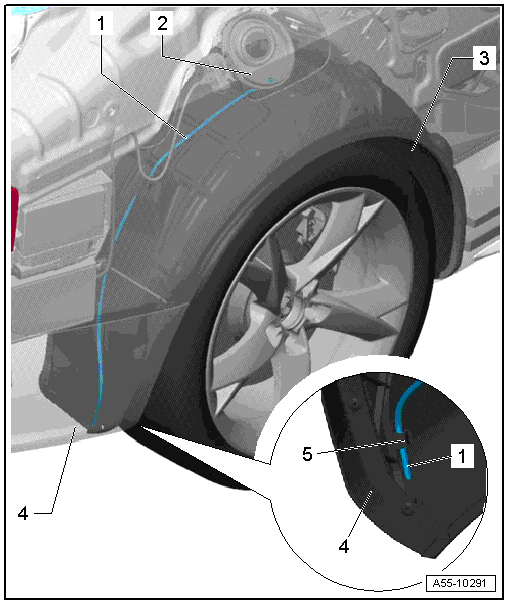

Fig 1: Fuel Filler Door Drain Hose

Courtesy of AUDI OF AMERICA, LLC

Drain Hose
-- Route the drain hose as shown under the wheel housing liner and insert it in the guide piece.
Fuel Filler Door
Wheel Housing Liner
- Loosen in the area of the drain hose and press it to the side.
Rear Bumper
Rear Guide Piece
- Drain hose inserted in the lower guide piece as shown.
