Overview - Rear Wheel Housing Liner

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

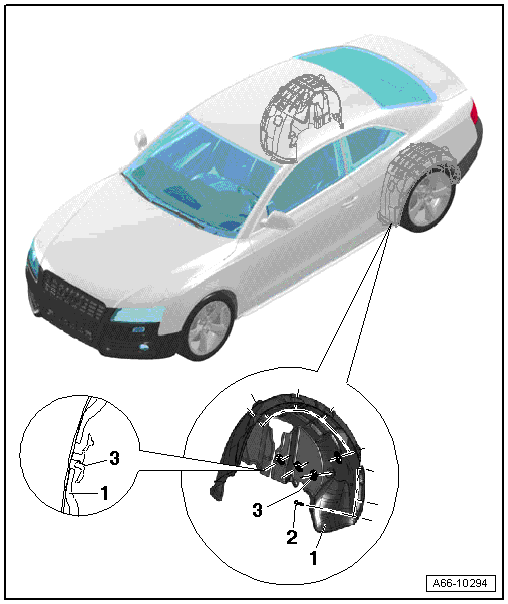

Fig 1: Identifying Rear Wheel Housing Liner Assembly Overview

Rear Wheel Housing Liner
- Removing:
  -- The rear wheel is removed.

  -- Remove the outer bolts.

  -- Remove the clips from the retaining pins.

  -- Remove wheel housing liner downward.
- Install in reverse order of removal.
Bolts
- 1.5 Nm
Clip
- Quantity: 7
- Loosen the retainer on the clips, for example, using a small screwdriver, and slide the clip sideways off the retaining pins.
