Overview - Front Wheel Housing Liner, Except AUDI RS5

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER, EXCEPT AUDI RS5 => Front Wheel Housing Liner

Driveshaft cover. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER, EXCEPT AUDI RS5 => Drive Axle Cover

Front Wheel Housing Liner

NOTE:

The front wheel housing liner is made of two pieces and can be removed separately.

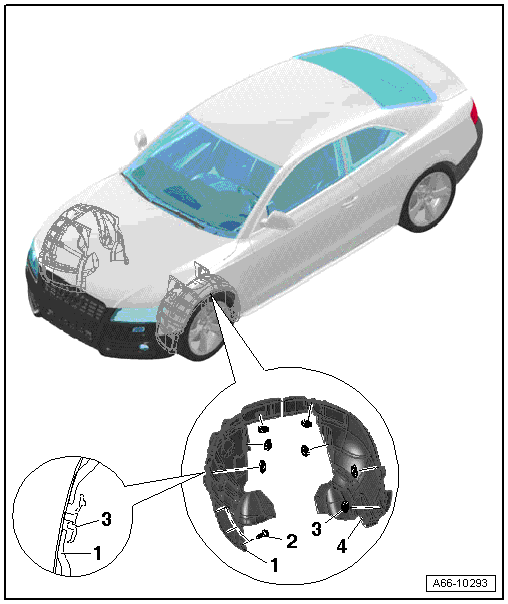

Fig 1: Identifying Front Wheel Housing Liner Assembly Overview
GWWA66-10293
  1. Wheel Housing Liner Front Section
    • Removing:
    • Drive axle cover, removing.
    • Press in front wheel accordingly.
    • Remove the bolts on the lower wheel housing liner.
    • Loosen the retainer on the clips, for example, using a small screwdriver, and slide the clip sideways off the retaining pins.

      -- Disengage wheel housing liner from fender and pull downward and out.

    • Install in reverse order of removal.
  2. Bolt
    • 1.5 Nm
  3. Clip
    • Quantity: 7
  4. Wheel Housing Liner

Drive Axle Cover

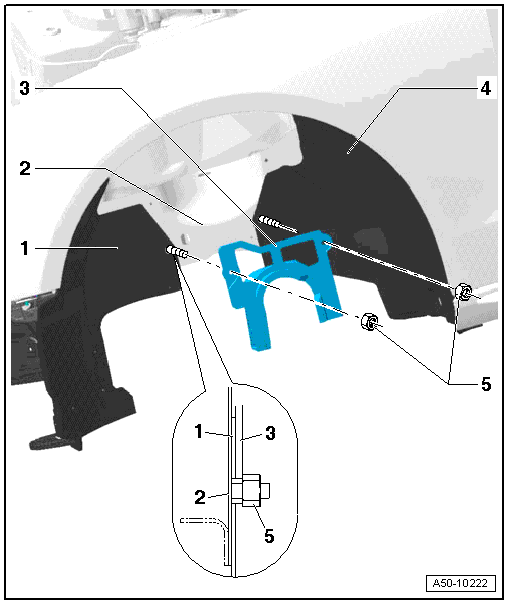

Fig 2: Front Driveshaft Cover
GWWA50-10222
  1. Wheel Housing Liner Front Section
  2. Longitudinal Member
  3. Driveshaft Cover
  4. Rear Part of Wheel Housing Liner
  5. Nut
    • 2 Nm
